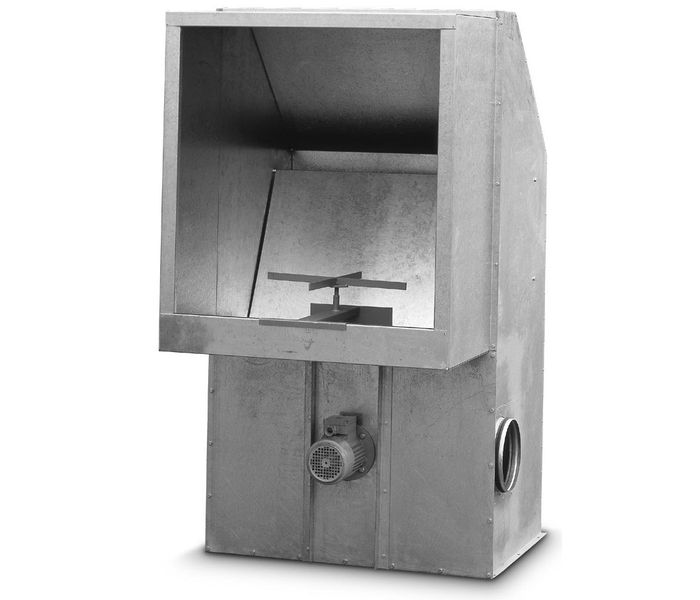

EMINENT E7 Spray Booth

As low as: €3,940.-
€3,940.- excl. VAT
  1. Complete your purchase
  2. Product information
  3. Specifications
  4. Frequently Asked Questions
  5. Product reviews
Complete your purchase
  • Ceiling Filter 600G per m2
    Ceiling Filter 600G per m2
    €27.57 €27.57
  • Pre-filters CR15500S
    Pre-filters CR15500S
    €15.48 €15.48
  • For-Filters CRB 290S
    For-Filters CRB 290S
    €11.35 €11.35
  • Car-Shape 3D Spray Samples - 1 piece
    Car-Shape 3D Spray Samples - 1 piece
    €3.95 €3.95
Product information

The EMINENT E7 spray booths are specially designed for small painting in, for example, professional repair paint workshops where high quality paint work should be delivered. The EMINENT spray booths are control friendly and are equipped as standard with various contemporary technologies.

Some features of the EMINENT E7 spray booths:

  • Available in both 400 volt, 50 Hz, 3 phases like 230 Volt, 50 Hz, 1-phase
  • Drainage tube can both on the left- as right side of your choice be mounted
  • Electric motor in explosion-proof execution
  • The cabin is taken part (especially for placing in close passes of importance)
  • De cabin comes with  and inclusive Andrea-filter
  • For the possible application of lighting is already a provision
  • The types E7-10 and E7-15 come complete with reducer of 250 mm at 300 mm and 400 mm, which fit on the mount drain tube of 300 mm and 400 mm.



    E7-08 E7-10 E7-12 E7-15
Working wide in mm: A 800 1000 1200 1500
Centre-to-centre distance to drain pipe in mm: B 140 140 140 140
Connection height drain pipe (heart) in mm:   388 388 388 388
Ductless Ø mm   250 250 250 250
Total depth in mm C 1250 1250 1250 1250
Working depth in mm E 1000 1000 1000 1000
working height (turnstile) in mm   900 900 900 900
Total height in mm   1930 1930 1930 1930
Air displacement in m³ per hour   2600 3100 3300 3520
static pressure in mm w.k:   48 45 43 41
Engine power in kW in EX-E-II T3   0,75 0,75 0,75 0,75
Weight in kg:   148 172 190 219
Full product information
Specifications
SKU conf_e7
Brand EMINENT
Packing 1 piece
Frequently Asked Questions

How long is a 2K spray can usable after activation?

24 hours. After activating the 2K spray can, the two components will mix, starting the curing process, making the spray can usable for 24 hours.

Product reviews
Be the first to review this product and help other customers make their decision.
