Stäubli RSI 06 Quick Coupling 6 mm transit for compressed air has a stainless steel housing with 22mm diameter. It weighs 86 grams, working pressure of 1 to 16 bar and a flow of 930 nl./min. at 6 bar.
Compressed air coupling for small hand tools
Staubli RSI-06 compressed air quick coupling has a nominal diameter from 6 to 11 mm. This reduces pressure loss when using small tools that work on compressed air.
Interchangeable with various hose connectors
Staubli RSI-06 Compressed air quick coupling is interchangeble with Stäubli RBE-06 hose connector. In addition, it is also interchangeable with the following brands: ISO 6150-C NW6, Oetiker, Trans-air, Legris and Gromelle.

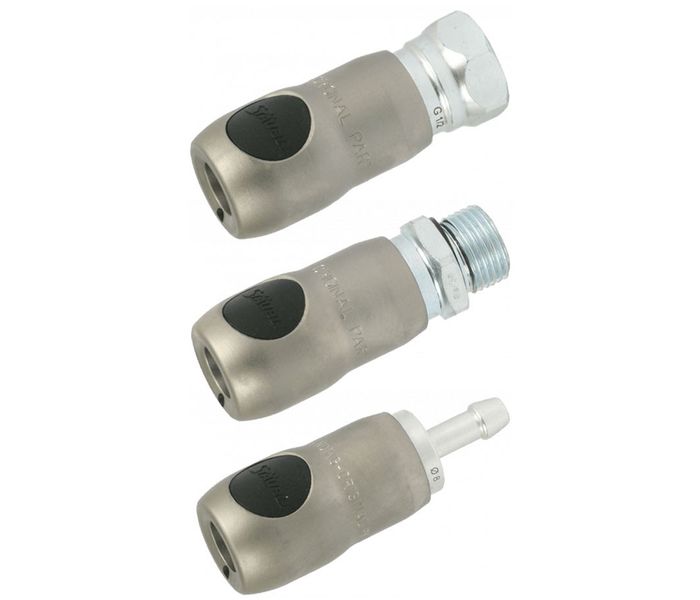

Staubli RSI-06 Coupling available in various types
RSI06 Stäubli Coupling is available in 3 different types with various connections. There is a Staubli RSI 06 quick coupling for any compressed air system.
Staubli RSI-06 Coupling with inner thread
1/4" screw thread
3/8" screw thread
1/2" screw thread
Staubli RSI-06 Coupling with external thread
1/4" screw thread
3/8" screw thread
1/2" screw thread
Staubli RSI-06 Coupling with hose pillar
6mm
8mm
10mm
13mm
Product Features Stäubli RSI 06 Coupling
Stainless steel
Black push button
Working pressure from 1 to 16 bar
Only 86 grams
Throughput of 6mm
Diameter of 22mm
Flow of 980 nl./min. at 6 bar
Accompanying hose connector: Staubli RBE-06
Interchangeable with:
ISO 6150-C NW6
Oetiker
Trans-air
Legris
Gromelle
Expand full description
Staubli RSI-06 Compressed Air Quick Coupling
Stäubli RSI 06 Quick Coupling 6 mm transit for compressed air has a stainless steel housing with 22...
See full description
Description
Staubli RSI-06 Compressed Air Quick Coupling
Stäubli RSI 06 Quick Coupling 6 mm transit for compressed air has a stainless steel housing with 22mm diameter. It weighs 86 grams, working pressure of 1 to 16 bar and a flow of 930 nl./min. at 6 bar.
Compressed air coupling for small hand tools
Staubli RSI-06 compressed air quick coupling has a nominal diameter from 6 to 11 mm. This reduces pressure loss when using small tools that work on compressed air.
Interchangeable with various hose connectors
Staubli RSI-06 Compressed air quick coupling is interchangeble with Stäubli RBE-06 hose connector. In addition, it is also interchangeable with the following brands: ISO 6150-C NW6, Oetiker, Trans-air, Legris and Gromelle.
Staubli RSI-06 Coupling available in various types
RSI06 Stäubli Coupling is available in 3 different types with various connections. There is a Staubli RSI 06 quick coupling for any compressed air system.
Staubli RSI-06 Coupling with inner thread
1/4" screw thread
3/8" screw thread
1/2" screw thread
Staubli RSI-06 Coupling with external thread
1/4" screw thread
3/8" screw thread
1/2" screw thread
Staubli RSI-06 Coupling with hose pillar
6mm
8mm
10mm
13mm
Product Features Stäubli RSI 06 Coupling
Stainless steel
Black push button
Working pressure from 1 to 16 bar
Only 86 grams
Throughput of 6mm
Diameter of 22mm
Flow of 980 nl./min. at 6 bar
Accompanying hose connector: Staubli RBE-06
Interchangeable with:
ISO 6150-C NW6
Oetiker
Trans-air
Legris
Gromelle
