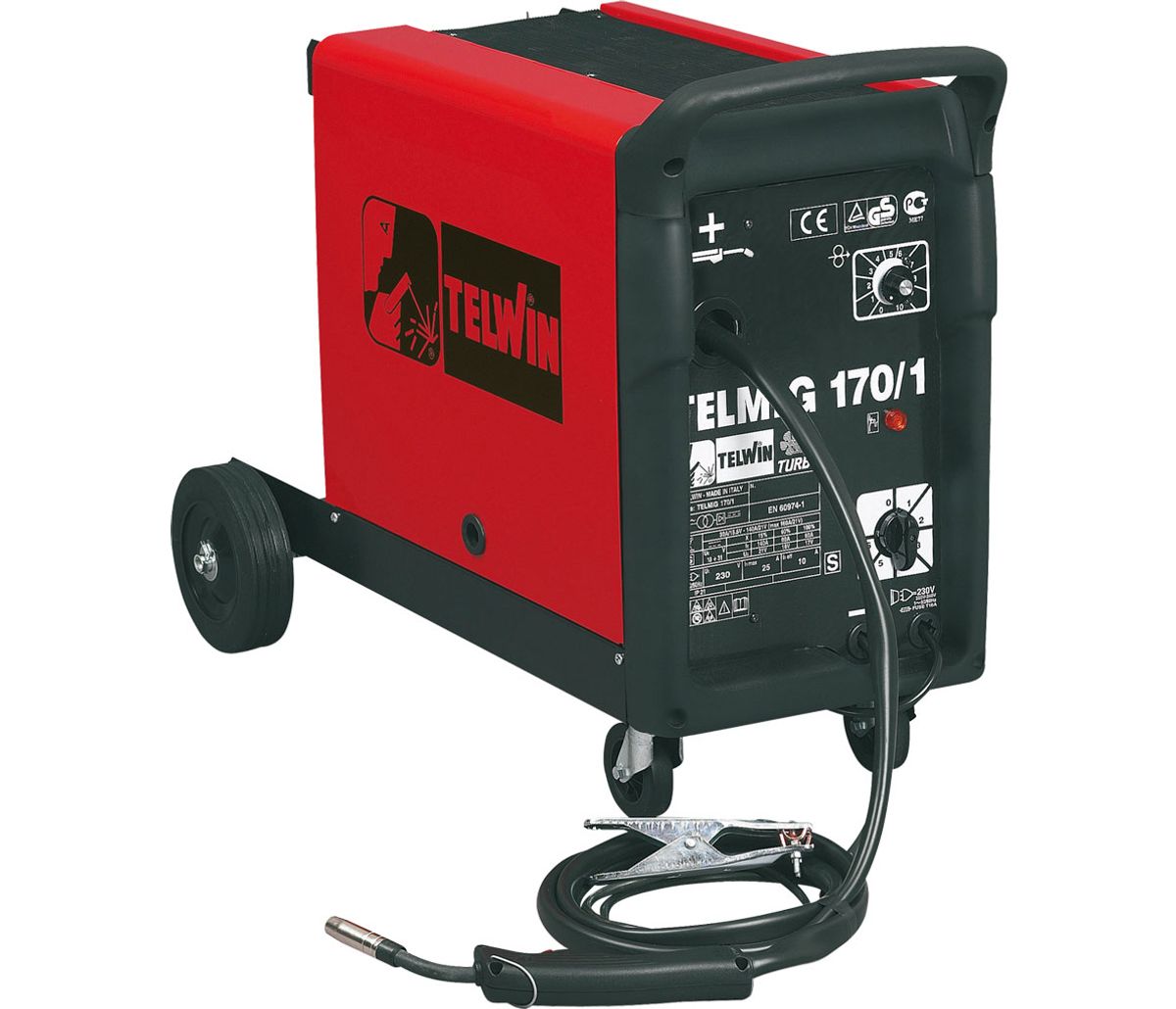

TELWIN TELMIG 170/1 Turbo Mig-Mag Welding Device - 30-160 Ampere

The TELWIN Telmig 170/1 Turbo is a cooled and compact Mig-Mag welding device on wheels for welding of standard weld wire in conjunction with welding gas. One of the most important features of the TELWIN Telmig 170/1 Turbo is that the power lies in welding of thin sheet metal, thick material is of course no problem. With 6 welding modes, wire speed control, fan and thermal protection. Supplied with a fixed welding package and suitable for wire spools up to 5kg.

Technical data:

• Voltage: 230 V
• Frequency: 50/60 Hz
• Phase 1 ~
• Current range: 30 ÷ 160 A
• Max. empty voltage: 31 V
• Duty cycle at 40 ° C: 140 A 15% - 80 A 60%
• Absorbed power: 5.2 kW - 2.3 kW
• Current consumption: 16 A
• Power factor: 0.9 cos φ
• Number of switch positions: 6
• Insulation class: IP21
• Ø aluminium wire : 0.8-1 mm
• Ø stainless steel wire: 0.8mm
• Ø steel wire : 0.6-0.8 mm
