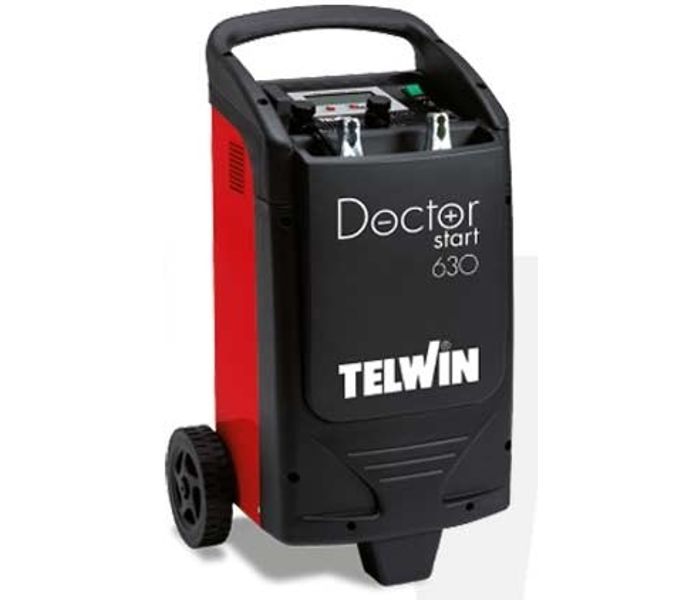

TELWIN DOCTOR START 630 Professional Battery Charger

The TELWIN DOCTOR START 630 is a very modern and complete battery charger suitable for many types of batteries. Used for loading, servicing and repairing of batteries from cars, tractors, trucks and excavators. The Doctor Charge automatically recognizes the type of battery and discharges the charger, recovery or maintenance program to the battery type. Suitable for loading, maintaining and repairing sulphated or highly discharged batteries. Features a clear and clear display. Friendly in use.

Features TELWIN DOCTOR START 630:

• Suitable for all battery's Gel / AGM / Lead
• Overload protection, polarity change, short circuit and damaged batteries
• Pulse-tronic: Maintenance function
• 8-step automatic
• Battery, boot and alternate tester.
• Stable power source for vehicles without battery (showroom, garage, diagnosis, ...).
• Memory function prevents data loss on board computers.
• Power Stream Dump Charger: 50% Efficiently Load
• Auto Recognize 6-12-24V
• Protection against electronics of loading object
• Load very empty battery
• Reduced heat generation

Technical Data TELWIN DOCTOR START 630:

• Charging voltage 12V, 24V
• Load current 90 A
• EN 60335-2-29 70 A
• EN 60335-2-29 1 v / c 360 A
• Maximum startup current 570 A
• Reference Capacity 10/1050 Ah 15h
• Absorbed power 2000-10000 W
• Voltage 230V
• Frequency 50-60 Hz
• Phase 1 ~
• Suitable for Battery Gel / AGM, Lead, MF, Ni-Cd
• Length 365 mm
• Width [mm] 460 mm
• Height [mm] 755 mm
• Weight 24 kg
