Hikmicro Thermal Imaging Camera with 3 image mode - ECO-V

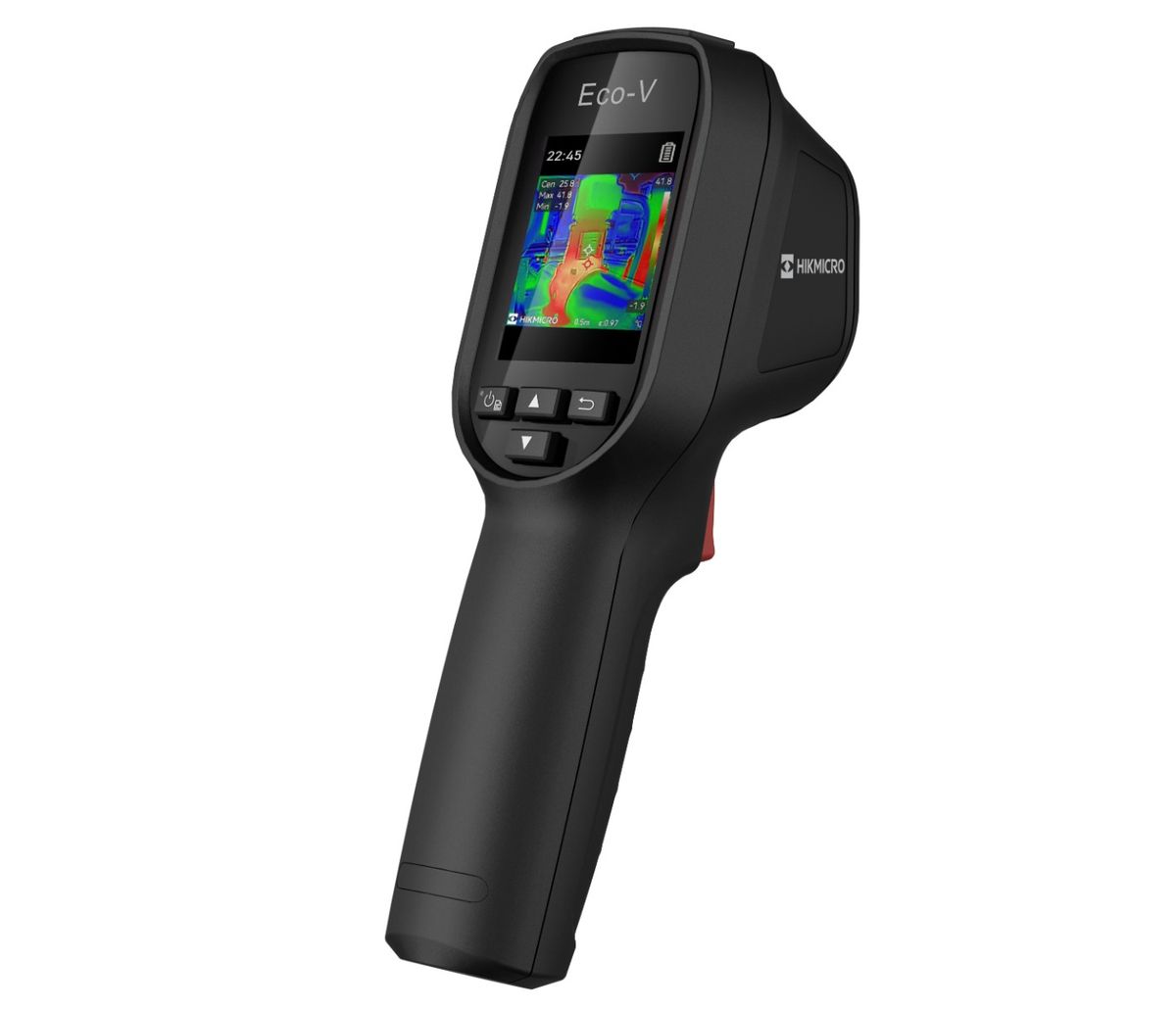

Hikmicro ECO-V Thermocamera

Hikmicro ECO-V Thermal Camera features a Laser Pointer and has the functionality to switch between three different imaging modes. This advanced thermal imaging camera from Hikmicro is ideally suited for daily, intensive and professional use. With an image resolution of 240x240 pixels and a temperature range of -20°C to +550°C, this Hikmicro thermal camera measures center, heat and cold at a glance. In short, the most universal thermal camera for detecting insulation problems, leaks and more.

Thermal camera with 3 image mode

ECO-V from Hikmicro is a thermal camera with 3 image mode functionality. This allows you to switch between the three different images, namely: thermal, visual and fusion. Visual is the standard camera mode without thermal images. Thermal is the opposite and only shows thermographic images. Fusion is a combination between these two images.

Thermal imaging camera with laser pointer

Thermal imaging camera with laser pointer allows you to target heat differences, leaks and insulation problems. A thermal camera with built-in laser makes sure that you are measuring the temperature of what you are aiming at. On the 2.4" LCD screen you can read the thermal image.

Features Hikmicro ECO-V Thermal Camera

• Thermal camera with 3 image modes
• 4GB storage for about 30,000 thermal images
• High quality image with LED backlight
• Li-ion battery lasts up to 8 hours
• Fully rechargeable in 3 hours
• Rechargeable via USB-C
• Weighs only 290 grams

Technical specifications Hikmicro ECO-V

• IR resolution: 96x96 (9,216 pixels)
• Super IR resolution: 240x240 (57,600 pixels)
• NETD: < 50 mK (@ 25 °C, F#=1.0)
• Detector pitch: 12μm
• Spectral range: 7.5 to 14 μm
• Focal length: 1.35 mm
• F-number: F1.0
• Field of view (FOV): 50.0° × 50.0°
• Spatial resolution (IFOV): 8.89 mrad
• Protection class: IP54
