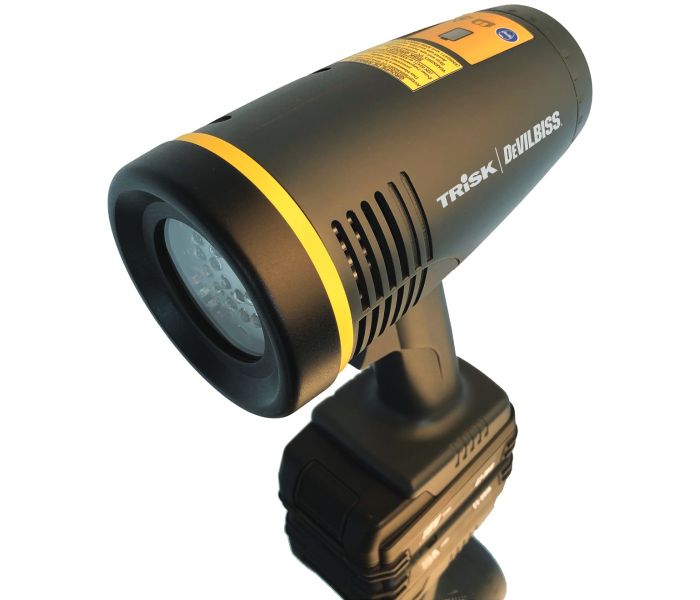

Trisk / DeVilbiss TruCure UV Lamp

Trisk UV LED Lamp

Trisk / DeVilbiss UV Lamp is a portable curing device for curing all UV products! The TruCure UV LED unit has a unique lens that generates consistent UV intensity, ensuring proper curing over the entire surface.

UV curing

One of the main advantages of UV curing over conventional curing is that no thickness loss occurs in the dried coating. Conventional drying does suffer from this. With UV drying you can drastically reduce the drying time. You can process the dried product immediately after exposure with the Trisk UV Drying Lamp, thus saving valuable time!

What are the advantages of this DeVilbiss UV lamp?

The LED UV lamp is user-friendly, lightweight, ergonomic handle, constant UV exposure, a unique lens and delivers more power than competing units for this price. Average intensity is measured at 165 mW/cm2 at 10 cm (4") from the surface. UV light intensity and energy is constant throughout the life of the battery charge - whether the battery has 90% or 10% remaining capacity, the UV intensity remains unchanged.

How is Trisk's UV lamp delivered?

1. A protective foam hard case
2. UV safety glasses
3. Spare filter
4. User manual
5. Battery
6. Charger
7. LED unit

UV lamp technical specifications

• Weight : 1.2kg
• Voltage : 18.5VDC
• Wattage: 100W
• Storage temperature: from -20°C to +70°C
• Working temperature: 0°C to 35°C
• Peak wavelength: 395 nm
• IP 4X
• Meets CE standards
• Approximately 160 mW/cm2 UV LED

Features Trisk Lamp UV

• Handle is made of glass reinforced polymer
• Strong yet lightweight
• Comfortably balanced and ergonomic
• Includes replaceable air filter
• Contains a unique lens
• Intensity and energy remains constant
